RL 204 SN

Directional Speaker


Key Features
  • Directional speaker with supercardioid pattern

  • 2 × 4" woofer + 1" tweeter horn

  • 160 watts power capacity

  • 80° × 40° (H × V) nominal dispersion

  • 130 Hz – 20 kHz frequency range

  • 107 dB maximum SPL

  • Extensive mounting accessories

Fields of Application
  • Exhibitions, trade fairs
  • Gastronomy, hotels
  • Conference rooms
  • Large rooms, halls
  • Speech reinforcement
Description

The RL 204 SN is a 2-way directional speaker with a supercardioid pattern for targeted acoustic irradiation in rooms with long reverberation times. By delivering strong directivity across the entire frequency range, the RL 204 SN primarily focuses sound on the listening zone and only causes minimum reverberation when sound is reflected from walls and the ceiling. As a result, it reproduces music and speech very purely and clearly with minimum feedback, even in rooms with long reverberation times.

Due to the way it is designed, the RL 204 SN has limited low-frequency characteristics. As a result, additional subwoofers should be used to compensate for this when playing music.

We recommend using a SUB 20 (A) or SUB 40 (A) subwoofer to supplement the bass range.

Technical Data
Principle

2-way directional speaker with supercardioid pattern

Components

2 × 4" woofer + 1" dome tweeter

Frequency range
130 Hz – 20 kHz
Impedance
8 Ohm
Power capacity
80 watts RMS, 160 watts program
Sensitivity

85 dB (1 W @ 1 m)

Maximum SPL

107 dB @ 1 m

Dispersion angle (H × V)
80° × 40°
Connectors
2 × Speakon NL 4 MP
Dimensions (W × H × D)

160 × 370 × 180 mm

Weight
4.2 kg
Cabinet
Plywood, suspension points M 6 on the side and at the rear, front metal grille lined with foam material, finish: varnish semi-matt
Warranty
5 years
Downloads
Datasheet (PDF)

ModelVersion

RL 204 SN White

Order No.: 0905-0001

RAL 9016

RL 204 SN Black
Order No.: 0905-0002
RAL 9005
Other colours and versions on request
Accessories

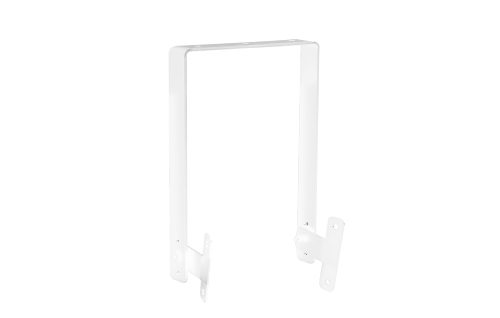

UB 204 White

Order No.: 0905-1104

U-bracket incl. mounting material

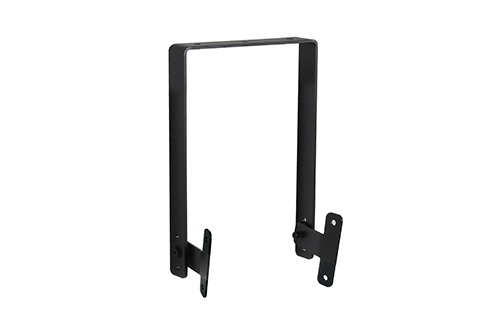

UB 204 Black

Order No.: 0905-1104

U-bracket incl. mounting material

WH 350 White
Order No.: 7114-0028
Wall mount
WH 350 Black
Order No.: 7114-0029
Wall mount
