FZ 110

Cylindric Installation Speaker


Key Features
  • Cylindrical design

  • 3" full-range speaker

  • Electronic frequency response linearization

  • 40 watts power capacity

  • 8-ohm and 100-V versions

  • Standard models white and black

  • Suitable for humid rooms

Fields of Application
  • Exhibitions, trade fairs
  • Gastronomy, hotels
  • Media rooms
  • Museums
  • Sales rooms
Description

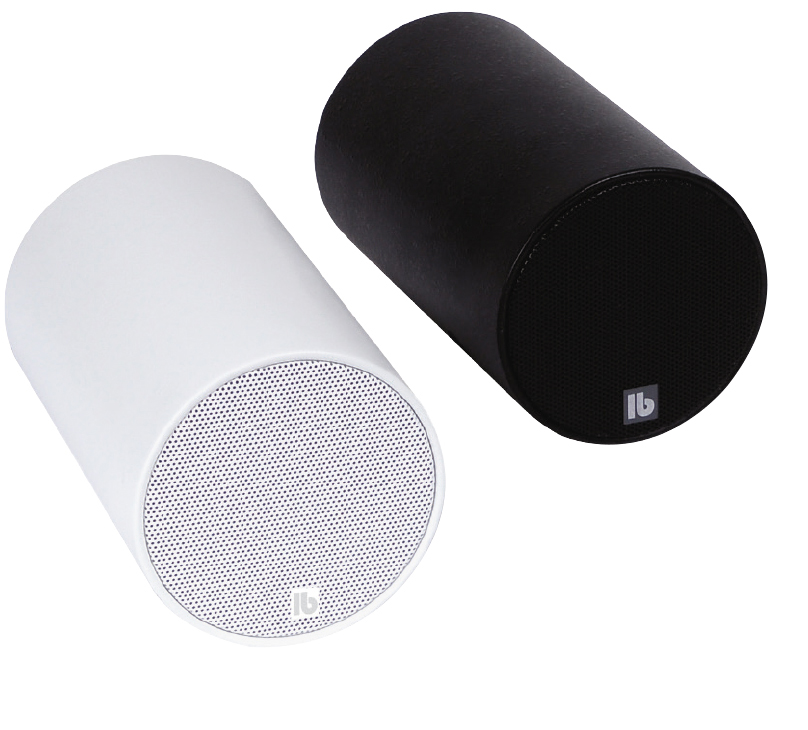

The FZ 110 is a general-purpose small cylindrical installation speaker with an electronically linearized 3“ full-range speaker. It can be suspended from a ceiling or mounted on a ceiling or a wall using the WH 110 l-bracket.

The FZ 110 is a visually interesting alternative, particularly in sound systems where built-in speakers cannot be used for architectural reasons. The FZ 110 can be easily combined with other types of speakers thanks to its neutral sound characteristics.

For high-quality music reproduction, we recommend combining the FZ 110 with SUB 20 or SUB 40 subwoofers.

Technical Data
Principle

Cylindrical full-range speaker, electronically linearized

Components

3" full-range driver

Frequency range
110 Hz – 19 kHz
Impedance
8 Ohm
Power capacity
20 watts RMS, 40 watts program
Sensitivity

83 dB (1 W @ 1 m)

Maximum SPL

96 dB @ 1 m
100 V version: 93 dB @ 1 m

Nominal dispersion
120°
Dimensions

Ø 110 mm, l = 190 mm

Weight
1 kg
Fastening points
Suspension point at back, threaded insert M 6 on the side for wall mount
Cabinet
Aluminium, powder-coated precision steel grille
Connectors
Pluggable screw-type terminals
Warranty
5 years
Downloads
Datasheet (PDF)

ModelVersion

FZ 110 White

Order No.: 0601-0001

RAL 9016

FZ 110 Black

Order No.: 0601-0002

RAL 9005

FZ 110 T White
Order No.: 0601-0003
100 V-versions, Power 2.5/5/10 watts
FZ 110 T Black
Order No.: 0601-0004
100 V-versions, Power 2.5/5/10 watts
Other colours and versions on request
Accessories

WH 110 White

Order No.: 7109-0001

L-bracket for FZ 110, with assembly plate, rotatable and pivotable, incl. savety rope, RAL 9016

WH 110 Black

Order No.: 7109-0002

L-bracket for FZ 110, with assembly plate, rotatable and pivotable, incl. savety rope, RAL 9016

SR 300

Order No.: 7109-0003

Stainless steel rope for pendant mounting, lenght 3 m, thickness 1 mm, one side with loop
